Product Overview

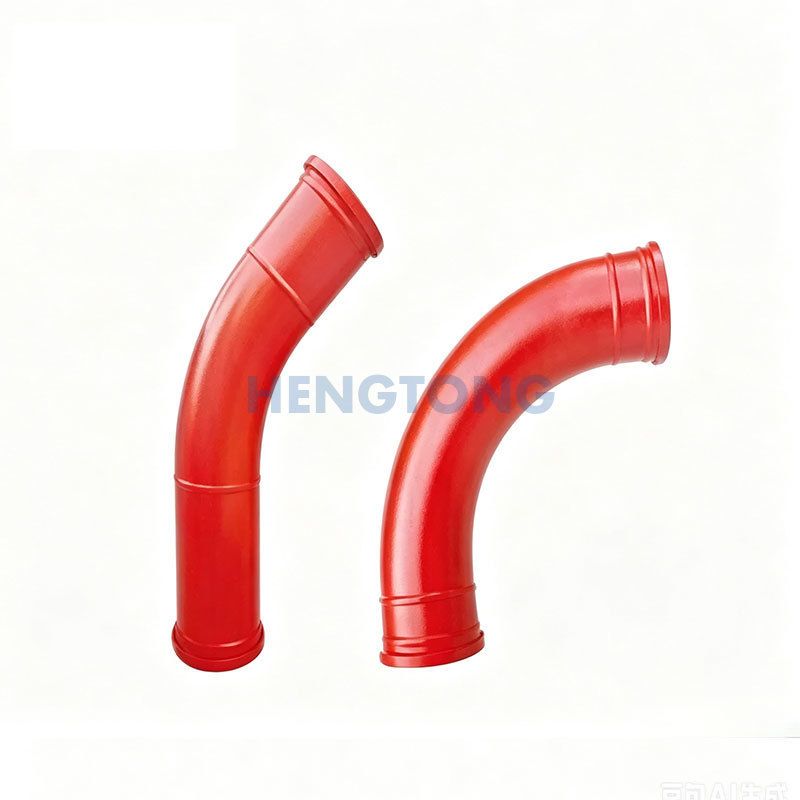

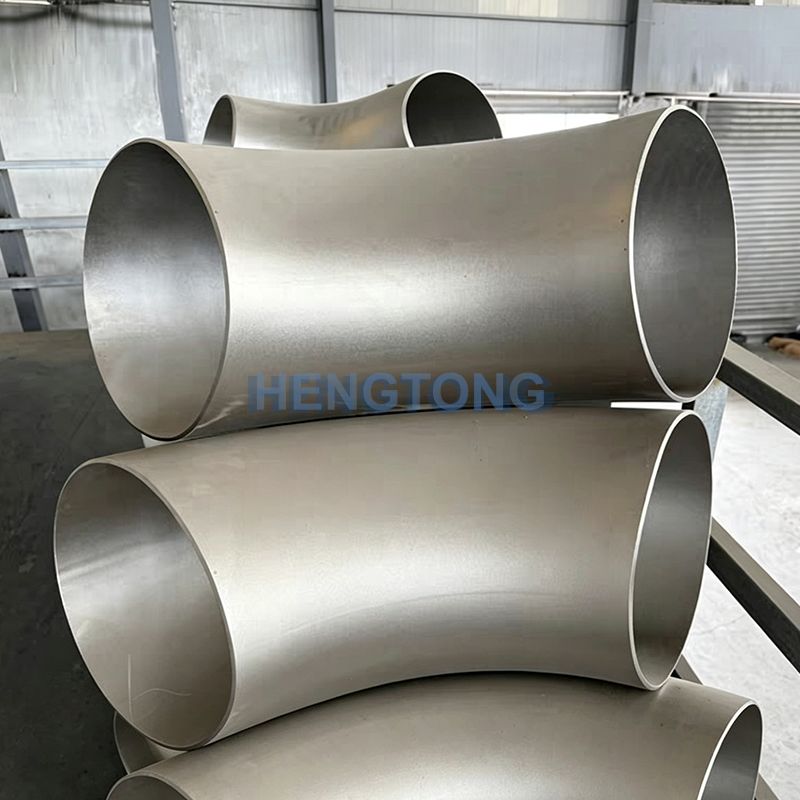

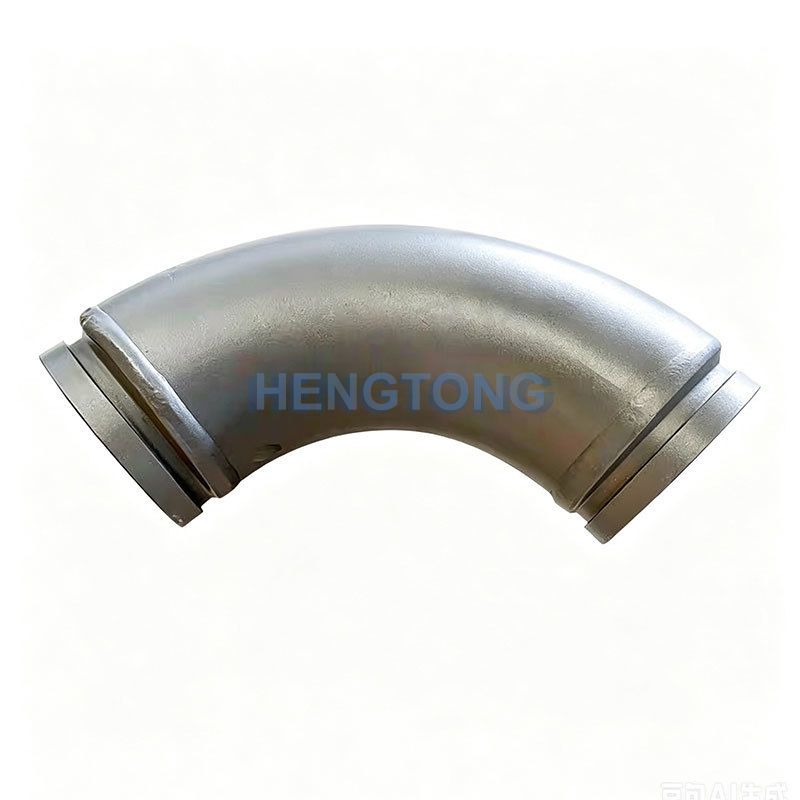

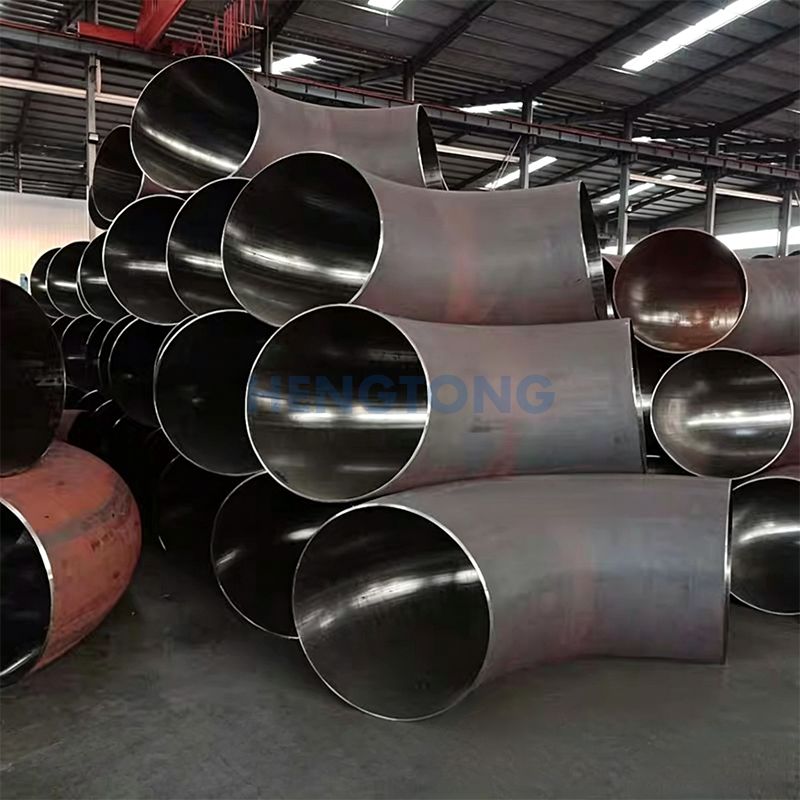

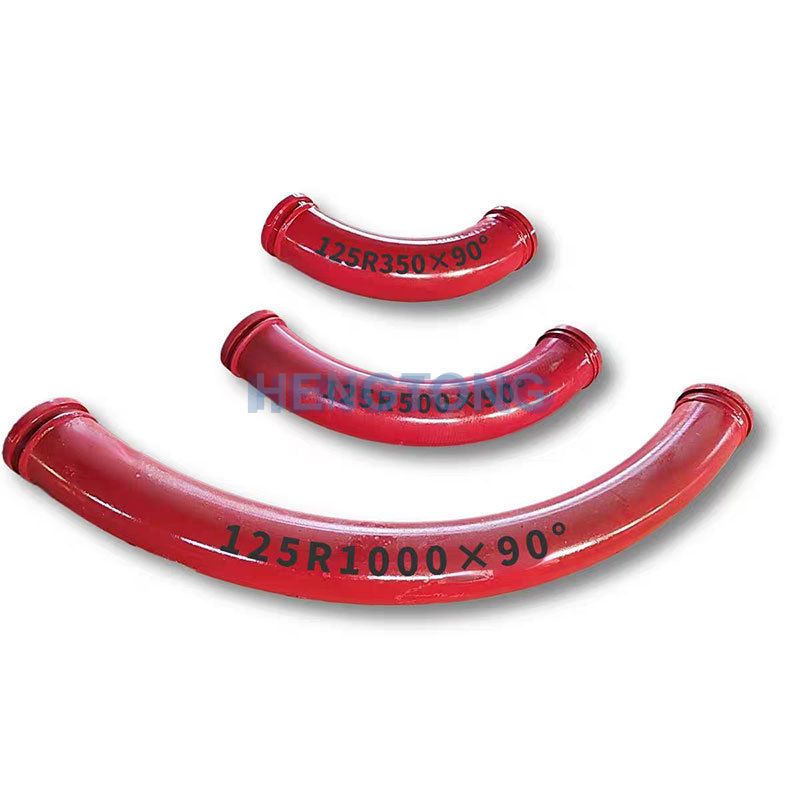

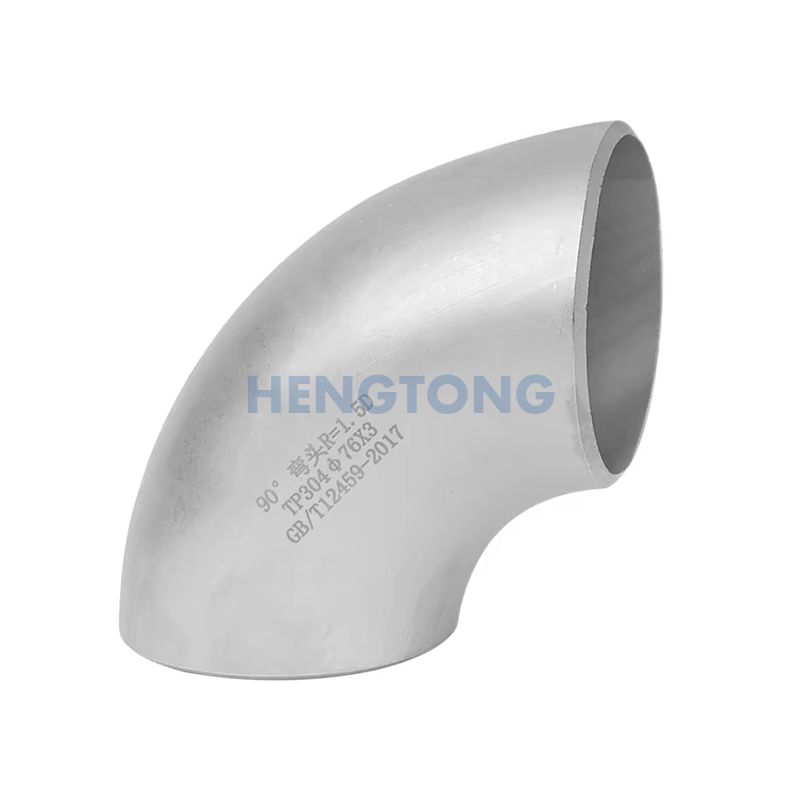

A 90° elbow is one of the most essential and widely used fittings in piping systems, primarily employed to deflect the flow direction by 90°. Featuring a smooth, rounded transition design, it effectively reduces fluid resistance and pressure loss, ensuring stable and efficient media conveyance. With its compact structure and straightforward installation, it serves as an indispensable foundational component for the layout of various industrial pipelines.
Production Process and Specification Parameters
Manufactured using proven hot‑pushing, cold‑extrusion, and stamping processes, the elbows feature uniform wall thickness, smooth inner and outer surfaces, and a robust, stable overall structure.
Forming process: seamless, welded
Flow range: Seamless DN15–DN1200; Welded DN200–DN2000
Wall thickness grades: SCH10, SCH20, standard wall thickness STD, SCH40, SCH60, SCH80, extra‑thick wall thickness XS, and ultra‑extra‑thick wall thickness XXS; custom thickened wall thicknesses are available, with a maximum thickness of up to 150 mm.
Bending radius: 1D short radius, 1.5D long radius; custom non-standard radii available.
Applicable Materials and Implementation Standards
Made with premium raw materials, available in multiple material options, and suitable for a wide range of operating conditions:
Carbon steel, stainless steel, alloy steel, low-temperature steel, and other custom specialty materials
Manufactured in strict accordance with the following international standards: ASME B16.9, GB/T 12459, DIN 2615, GOST 17375, JIS B2311.
Quality Control and Surface Treatment
All 90° elbows undergo a comprehensive suite of rigorous inspections, including chemical composition analysis, mechanical property testing, hydrostatic pressure testing, and nondestructive examinations such as ultrasonic, magnetic particle, and radiographic testing, ensuring stable and reliable product performance.
Optional surface treatments include anti-corrosion paint, 3LPE coating, hot-dip galvanizing, sandblasting, and more, significantly enhancing the corrosion resistance of pipe fittings and extending their service life.
Application areas
It is widely used in various pipeline systems, including those for oil, natural gas, chemicals, water supply and drainage, power, shipbuilding, and metallurgy, and is suitable for complex industrial operating conditions involving low, medium, and high pressures as well as corrosion‑resistant applications.
Customized Services
Our factory offers comprehensive custom‑made 90° elbows, supporting non‑standard diameters, special wall thicknesses, specialized materials, bespoke bend radii, and tailored anti‑corrosion treatments. We can precisely fabricate according to customer drawings, samples, or on‑site requirements, ensuring consistent product quality, tight dimensional tolerances, and short lead times.
