45° elbow

Product Overview

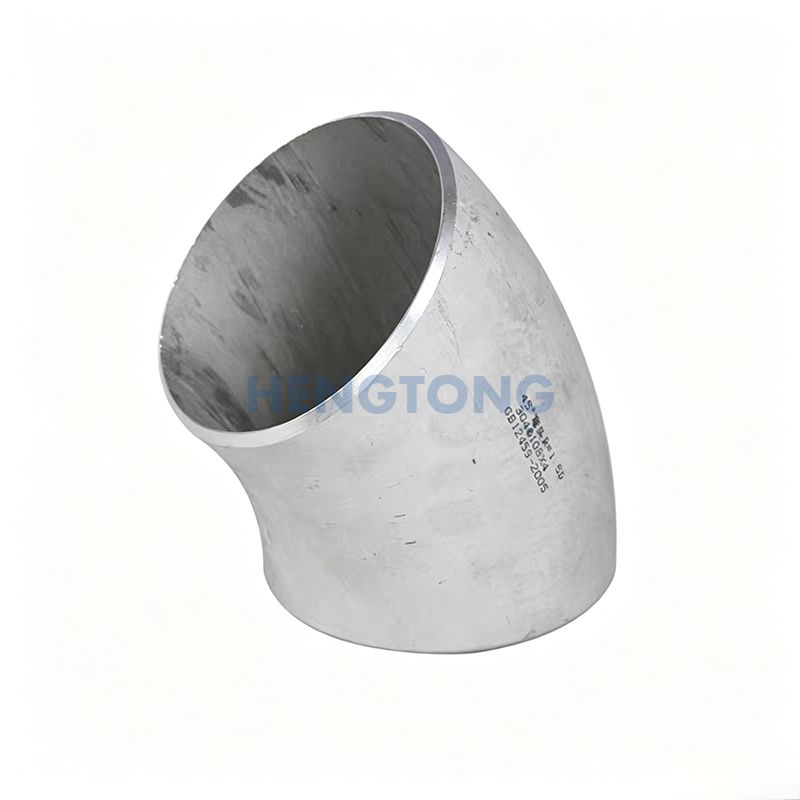

A 45-degree elbow is a commonly used pipe fitting in piping systems, specifically designed to deflect the flow direction of the conveyed medium by 45°. Featuring a smooth, rounded transition, it effectively reduces fluid resistance and pressure loss, ensuring a gentle and stable change in flow direction within the pipeline. With its compact design and easy installation, it is an indispensable component in a wide range of industrial piping projects.

Production Process and Specification Parameters

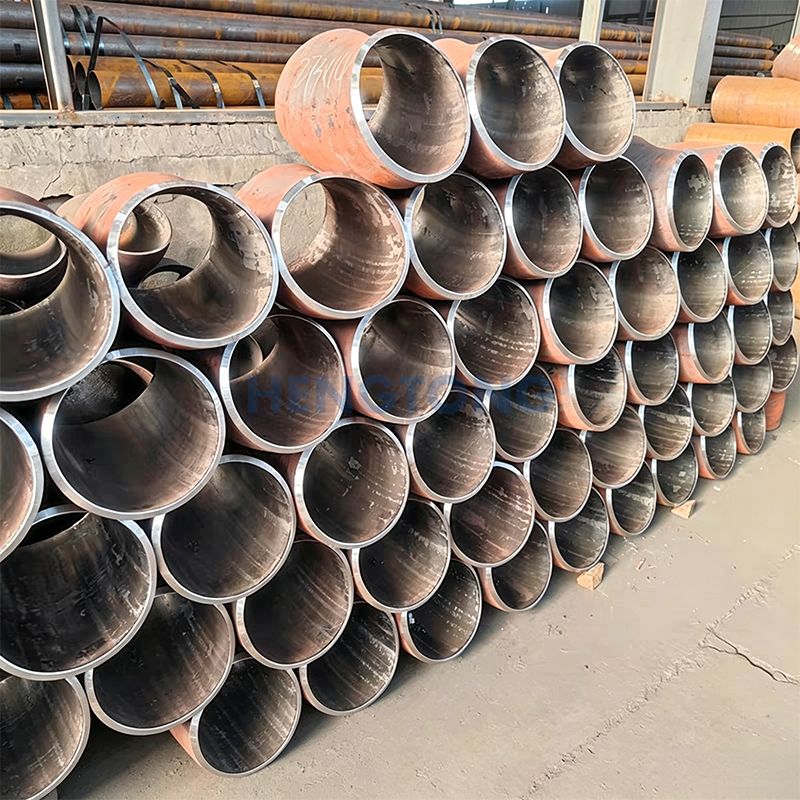

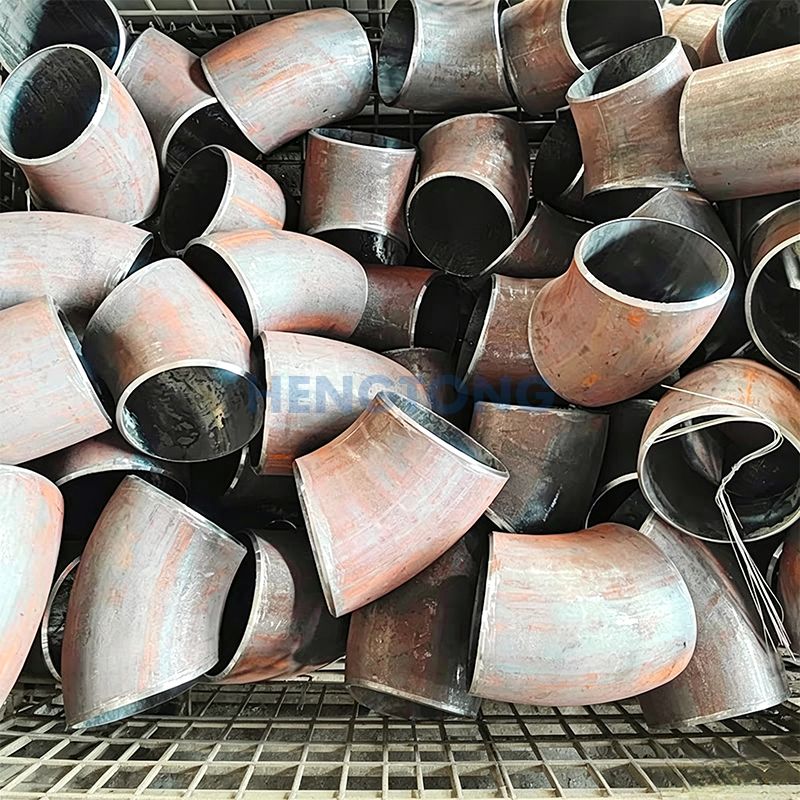

Our factory manufactures 45° elbows using proven hot‑push forming, cold extrusion, and stamping processes, resulting in uniform wall thickness, smooth inner and outer surfaces, and excellent structural stability.
Forming process: seamless, welded
Caliber range: Seamless DN15–DN1200; Welded DN200–DN2000
Wall thickness grades: SCH10, SCH20, standard wall thickness STD, SCH40, SCH60, SCH80, extra‑thick XS, and extra‑extra‑thick XXS; custom maximum wall thickness up to 150 mm.
Bending radius: 1D (short radius), 1.5D (long radius); custom special radii available upon request.

Applicable Materials and Implementation Standards

High-quality raw materials are used to manufacture 45° elbows, available in multiple material options to suit a wide range of operating conditions.
Carbon steel, stainless steel, alloy steel, low-temperature steel, and other custom specialty materials
The product fully complies with domestic and international standards, including ASME B16.9, GB/T 12459, DIN 2615, GOST 17375, JIS B2311, and others.

Quality Control and Surface Treatment

Each 45-degree elbow undergoes a comprehensive suite of rigorous inspections, including chemical composition analysis, mechanical property testing, hydrostatic pressure testing, and nondestructive examinations such as ultrasonic, magnetic particle, and radiographic testing, ensuring consistent product performance.
Optional surface treatments include anti-corrosion paint, 3LPE coating, hot-dip galvanizing, and sandblasting, which significantly enhance the corrosion resistance of pipe fittings and extend their service life.

Application areas

Widely used in pipeline systems across industries such as petroleum, natural gas, chemical processing, water supply and drainage, power generation, shipbuilding, and metallurgy, it is suitable for a variety of demanding operating conditions, including medium- and low-pressure, high-pressure, and corrosion‑resistant applications.

Customized Services

We offer full‑range custom fabrication of 45° elbows. We can precisely manufacture non‑standard diameters, special wall thicknesses, and specialized materials, tailored to customer drawings, samples, and project requirements, with customized bend radii and personalized anti‑corrosion surface treatments. Our products are consistently high‑quality, and we maintain short lead times.
